Glue and meter roll rebuild parts support complete restoration of the Double Glue Unit in a corrugated box machine. Inside the Double Glue Unit, the glue roll transfers starch adhesive while the meter roll controls film thickness before bonding at the double backer. When bearings, journals, seals, and adjustment components wear, adhesive control declines and board quality becomes inconsistent. We supply precision glue and meter roll rebuild parts that restore alignment, rotational stability, and adhesive metering accuracy inside the Double Glue Unit.
View full list of replacement parts for the rebuild at the end of this article.
Glue and Meter Roll Rebuild Parts for Double Glue Unit Performance
The glue roll and meter roll function as a matched assembly inside the Double Glue Unit. Together, they regulate adhesive transfer across the full machine width. However, rebuild success depends on more than resurfacing roll faces. Supporting components must maintain concentricity, load capacity, and mechanical stability.

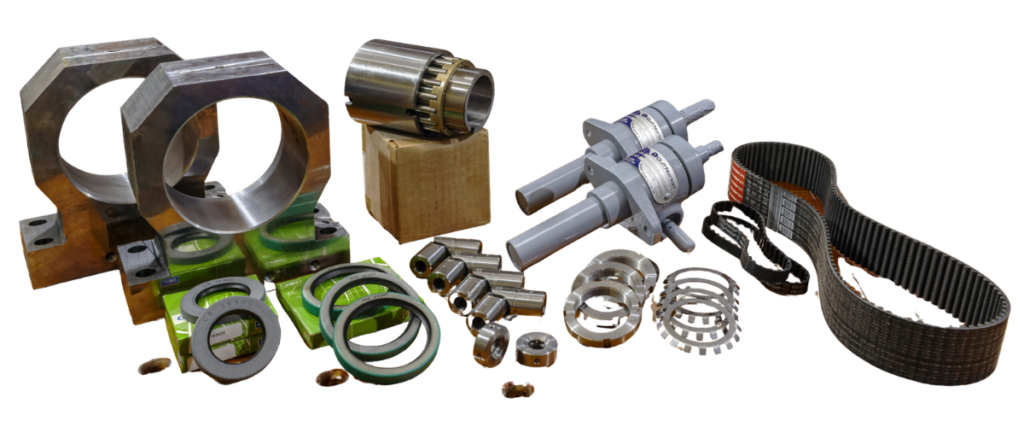

Our glue and meter roll rebuild parts integrate directly into the existing assembly to restore:
-
Bearing alignment and load distribution
-
Shaft and journal integrity
-
Seal protection against adhesive exposure
-
Drive-side rotational stability
-
Proper roll engagement and adjustment control
As a result, the Double Glue Unit maintains consistent adhesive film thickness at varying production speeds. Furthermore, restored mechanical tolerances reduce vibration and extend rotating component service life.
Precision Components for Glue and Meter Roll Rebuild Parts
We engineer our glue and meter roll rebuild parts to meet OEM dimensional specifications for corrugated box machines. Because the Double Glue Unit operates continuously in a high-moisture adhesive environment, material selection and machining accuracy directly influence long-term performance.
Available rebuild components include:
-
Bearing assemblies
-
Bearing housings
-
Seals and seal kits
-
Shaft and journal components
-
Adjustment mechanisms
-
Drive-side components
-
Mounting hardware
Additionally, correct component replacement during a rebuild helps reduce adhesive waste per MSF and improves bond consistency across board grades.
Supporting Corrugated Box Machine Stability Through Rebuild Parts
Glue and meter roll rebuild parts play a direct role in maintaining production stability. When worn components remain in service, operators often compensate by increasing adhesive volume, which raises operating cost and creates bond variation.
By replacing critical mechanical elements during a rebuild, maintenance teams can:
-
Improve adhesive regulation accuracy
-
Reduce starch consumption
-
Minimize scrap caused by dry lap or over-application
-
Extend bearing and shaft life
-
Stabilize Double Glue Unit operation at higher speeds
Consequently, the corrugated box machine operates with greater mechanical balance and more predictable bonding performance.
Inventory and Lead Times for Glue and Meter Roll Rebuild Parts
We strive to stock most glue and meter roll rebuild parts for shipment within 3 to 5 business days, subject to availability. Quick access to replacement components helps reduce downtime during scheduled maintenance or corrective repairs.
While we do not provide installation or maintenance services directly, we can recommend service providers experienced in Double Glue Unit rebuilds for corrugated machinery.
Glue and meter roll rebuild parts restore adhesive control and mechanical precision inside the Double Glue Unit of a corrugated box machine. By supplying OEM-spec replacement components, we help rebuild teams reestablish alignment, metering accuracy, and rotational stability. As a result, plants maintain consistent board quality and reduce downtime associated with glue station wear.
Contact us for OEM pricing and engineering support.
DGU Glue and Meter Rolls Part Numbers
Glue roll assembly R45702F
| Item | Part Number | Description | QTY | |
| 1 | WA11709 | Roller bearing | 2 | |
| 2 | WA40526 | Ball thrust bearing | 1 | |
| 3 | WA04643 | Seal, inner retainer | 2 | |
| 4 | WA69148 | Seal, outer retainer O.S. | 1 | |
| 5 | WA06671 | Seal, outer retainer D.S. | 1 | |
| 6 | WA05326 | Bearing locknut | 1 | |
| 7 | WA05327 | Bearing lockwasher |
1 |
Meter roll assembly R58356F
| Item | Part Number | Description | QTY | |
| 8 | R40352 | Eccentric, bearing housing | 2 | |
| 9 | R40364 | Housing, eccentric | 2 | |
| 10 | WA11792 | Roller bearing | 2 | |
| 11 | WA32146 | Ball thrust bearing | 1 | |
| 12 | WA80913 | Seal, inner retainer O.S. | 2 | |
| 13 | WA82490 | Seal, outer retainer O.S. | 1 | |
| 14 | WA05335 | Bearing locknut | 1 | |
| 15 | WA05336 | Bearing lockwasher | 1 | |
| 16 | WA42715 | Timing belt, drive | 1 | |
| 17 | WA82450 | Timing belt, gap | 1 |
| 18 | WA81126 | Jactuator | 2 | |
| 19 | R42229 | Stop nut Jactuator | 2 | |
| 20 | R05812 | Universal joint | 2 | |
| 21 | WA02411 | HSSS #10 – 24 x 3/8″ SST | 2 | |
| 22 | WA15300 | Taper pin w/ nut | 1 |
Scraper blade assembly R60413F
| Item | Part Number | Description | QTY | |
| 23 | R40387 | Scraper blade | 1 | |
| 24 | WA28456 | (WA45894) HHCS 1/4 – 20 x 5/8 | 9 | |
| 25 | WA18058 | (WA01371) Lockwasher 1/4″ | 9 | |
| 26 | R03129 | Stud, spring | 2 | |
| 27 | WA26093 | Compression spring | 2 | |
| 28 | WA46539 | Hex nut 3/8 – 16 | 2 | |
| 29 | WA26006 | Nyloc hex nut 3/8 – 16 | 2 | |
| 30 | WA19490/SS | Flat washer 3/8″ | 4 | |
| 31 | WA90361 | Bushing, self lubricating | 2 |
Trolley frame assembly MA0577F
| Item | Part Number | Description | QTY | |
| 32 | R42218 | (WA82415) Bearing, V-roller | 4 | |
| 33 | WA13956 | Hex jam nut 1-1/4 – 12 | 4 | |
| 34 | R46582/SS | V-track SST | 2 | |
| 35 | WA01741/CR | SHCS 1/2 – 13 x 3-1/2 zinc plated | 8 |
Input drive assembly R45700F
| Item | Part Number | Description | QTY | |
| 36 | R46027 | Gear 48T, glue roll | 1 | |
| 37 | R48798 | Gear 40T, pinion shaft | 1 | |
| 38 | WA82402 | Ringfeder lock | 2 | |
| 39 | R48282/X | Pinion drive shaft | 1 | |
| 40 | WA82470 | Bearing | 1 | |
| 41 | WA06291 | Bearing locknut | 1 | |
| 42 | WA06292 | Bearing lockwasher | 1 | |
| 43 | WA04643 | Seal | 1 | |
| 44 | WA64715 | Seal | 1 | |
| 45 | WA82234 | Taper pin #7 | 2 | |
| 46 | WA82464/X | Elastomer coupling assembly | 1 | |
| 47 | WA82464/E | Elastomer element (spare) | 1 |
Additional Considerations
| Item | Part Number | Description | QTY | |
| 48 | WA82060 | Timing sprocket w/ QD bush, meter | 1 | |
| 49 | WA82059 | Timing sprocket w/ QD bush, glue | 1 |
